Do I Need a Brake Controller to Rent a Trailer?

Do you need a brake controller? If the trailer has electric brakes, yes. And in Alabama, most trailers at or above 3,000 lbs gross weight are required to have brakes, which means you need a way to operate them.

Here is what that actually means for your rental.

What a brake controller does

A brake controller is a small device in your truck’s cab. When you press the brake pedal, it sends power back to the electric brakes on the trailer axles so the trailer helps slow itself down.

Without a controller, the trailer has brakes that never turn on. Your truck is doing all the stopping for both vehicles. On a light load you might not notice. On a heavy load you will, right when you need to stop.

The Alabama rule

Alabama requires trailers with a gross weight at or above 3,000 lbs to have brakes that can stop and hold the trailer. Those brakes also have to come on automatically if the trailer separates from the tow vehicle. That is the breakaway system.

Gross weight means the trailer plus everything on it, not just the empty trailer. A 1,500 lb trailer carrying a 2,000 lb mower is a 3,500 lb gross weight trailer.

Safety chains are required too, crossed under the coupler.

Which of our trailers needs one

Our tilt deck equipment trailer is rated at 14,000 lbs GVWR and has electric brakes. You need a working brake controller and a 7-pin plug to rent it. There is no way around that one.

Our utility trailer is 10’ x 6’ and rated at 3,000 lbs GVWR. Whether brakes come into play depends on the trailer’s setup and how heavy your actual load is. Ask us about your specific load and we will tell you straight.

How to tell if you already have one

Plenty of people have a brake controller and do not know it.

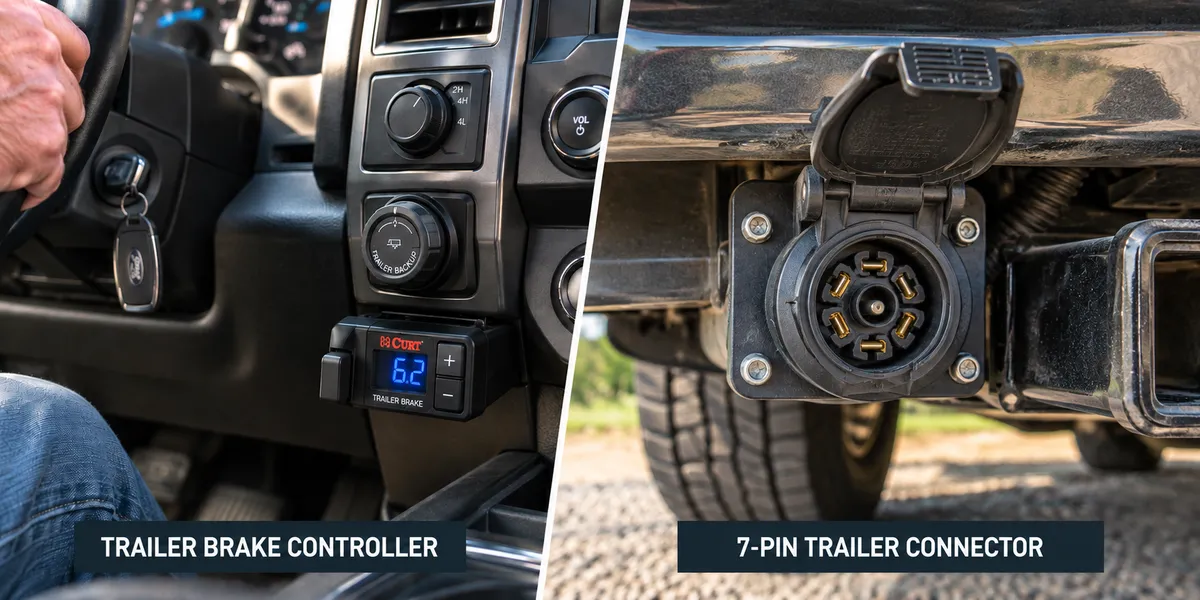

Factory integrated. Many trucks built in the last ten to fifteen years with a tow package have one built in. Look for a small button or dial on the dash, usually near the steering column or the shifter, labeled with a trailer icon or “gain.” Some are buried in the touchscreen menus under a towing section.

Aftermarket. These are small boxes mounted under the dash with a lever on the side. If you bought the truck used, check under there. Previous owners leave them behind more often than you would think.

No controller. If you have a 4-pin flat plug and nothing on the dash, you almost certainly do not have one. A 4-pin carries lights only, with no wire for brakes.

The plug is the fastest tell. Look at the connector hanging near your hitch. A round 7-pin means the truck is wired for trailer brakes. A flat 4-pin means it is not.

Setting the gain

Having a controller is not enough. It has to be set for the load.

Gain controls how hard the trailer brakes grab. Set it too low and the trailer pushes your truck. Set it too high and the trailer brakes lock up and skid.

Here is how to dial it in. In a safe, empty area, get up to about 20 to 25 mph. Use the manual lever on the controller, not the brake pedal. If the trailer barely slows you, raise the gain. If you feel the trailer wheels grab or skid, lower it.

You want firm, smooth deceleration with no lockup. Reset the gain any time your load weight changes noticeably.

Getting a controller installed

If you do not have one and you need one, this is not a difficult job.

Most trucks with a factory tow package already have a plug behind the dash waiting for a controller. In that case an aftermarket unit is often a plug-and-play install that a shop can do quickly, or that you can handle yourself with the right adapter harness.

Trucks without a tow package need more wiring, including a power feed from the battery and a connection to the brake switch. That is a job worth handing to a shop.

If installing one is not practical for your situation, we deliver within 50 miles. That may be the simpler path.

A common misunderstanding

Some people assume the trailer’s breakaway battery means they do not need a controller. It does not work that way.

The breakaway system is an emergency backup. It applies the trailer brakes fully if the trailer comes off the hitch. It does nothing during normal driving, and it is not a substitute for a controller.

The two systems do different jobs, and Alabama expects both to be functional.

Before you book

Check your plug. Round 7-pin or flat 4-pin?

Check your dash for a controller button or dial.

Tell us what you found, along with your truck’s year, make, and model. We can usually confirm your setup in a minute or two, and if something is missing we will tell you what it takes to fix it.
